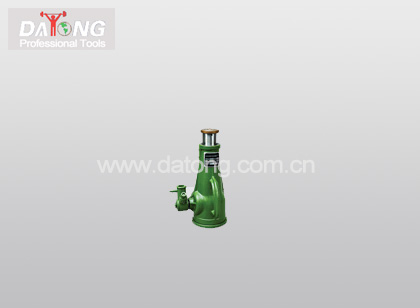

Proclass Name:SCREW JACK
Products Name:SCREW JACK-04
Products Ton:SCREW JACK-04
Products Intro:
| Model | Model | Lifting Wt (ton) | Min.H (mm) | Lifting H (mm) | Max H (mm) | Net Wt (kg) | GR.WT. (kg) | Measurement (cm) | Quantity (pcs) | 20´Container (pcs) |
| T730101 | ST0308 | 3.2 | 220 | 110 | 330 | 5.2 | 30 | 61.5×13.5×24.5 | 5 | 3000 |
| T730102 | ST0508 | 5 | 250 | 130 | 380 | 8 | 36 | 61.5×13.5×28 | 4 | 2000 |
| T730103 | ST0808 | 8 | 260 | 140 | 400 | 9 | 40 | 64×13.5×29 | 4 | 1800 |
| T730104 | ST1008 | 10 | 280 | 150 | 430 | 10.5 | 46 | 64×17×30 | 4 | 1560 |
| T730105 | ST1008D | 10 | 192 | 80 | 372 | 6.4 | 36 | 74×18.5×22 | 5 | 2500 |
| T730106 | ST1608 | 16 | 325 | 180 | 505 | 13.5 | 30 | 34×31×16.5 | 2 | 1200 |
| T730107 | ST2008 | 20 | 325 | 180 | 505 | 13.8 | 31 | 34×31×16.5 | 2 | 1160 |
| T730108 | ST2508 | 25 | 262 | 125 | 387 | 135 | 30 | 32×31×17 | 2 | 1200 |
| T730109 | ST3208 | 32 | 395 | 200 | 595 | 23.5 | 53 | 42×37×21 | 2 | 680 |
| T730110 | ST3208T | 32 | 320 | 180 | 500 | 14.5 | 44 | 42×37×17 | 2 | 810 |
| T730111 | ST5008 | 50 | 452 | 250 | 702 | 22.5 | 50 | 46×30×23 | 2 | 720 |
| T730112 | ST5008D | 50 | 310 | 150 | 460 | 19 | 42 | 34×29×22 | 2 | 850 |
